API Request

​

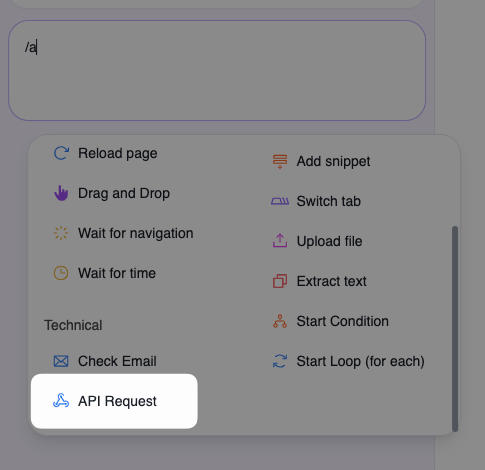

Overview

​

Form Fields

​

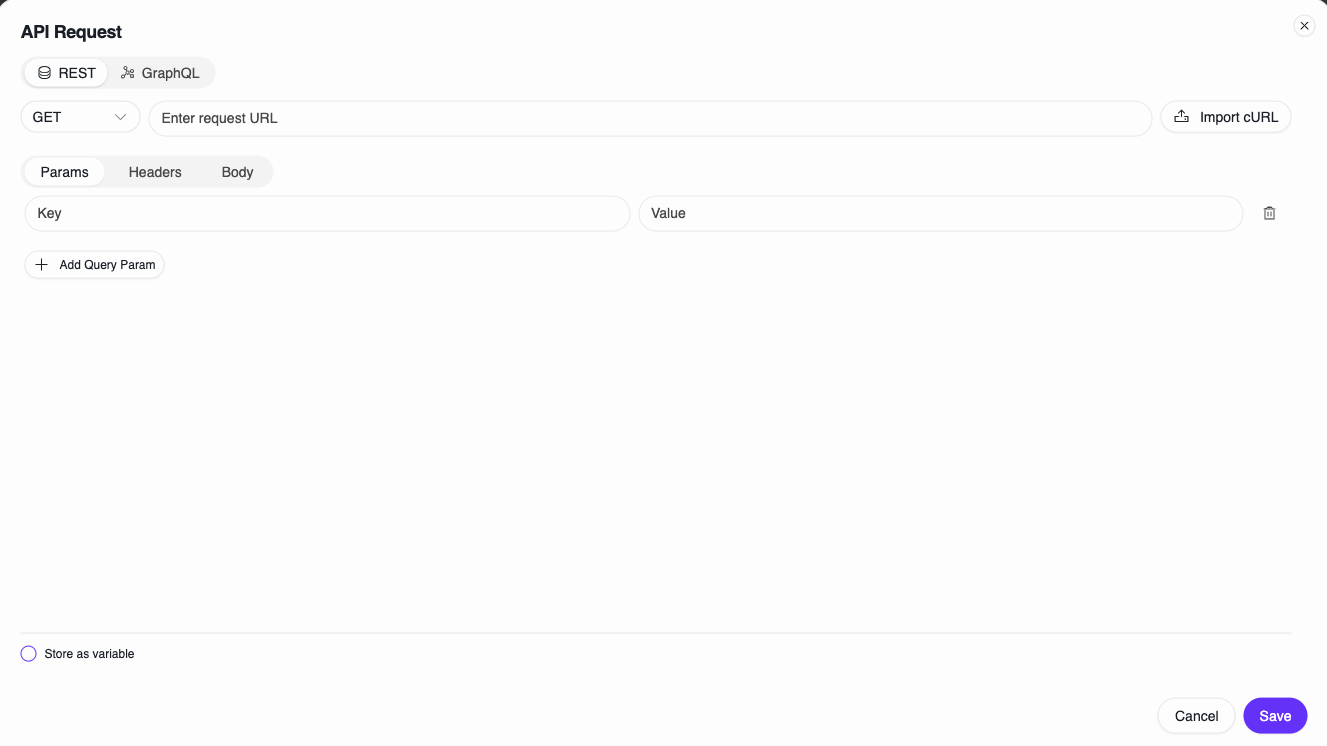

Form Configuration

​

Request Configuration

​

HTTP Method Selection

• GET: Retrieve data from the API
• POST: Create new resources or submit data
• PUT: Update existing resources completely
• DELETE: Remove resources from the API
• PATCH: Partially update existing resources

• GET: Green
• POST: Yellow
• PUT: Blue
• DELETE: Red
• PATCH: Purple

​

URL Field

• Complete URL: Enter the full API endpoint URL including protocol
• Real-time Validation: URL format validation with error feedback
• Environment Variables: Support for environment variable substitution
• Query Parameter Integration: Automatically appends parameters from the Params tab

​

Tabbed Configuration Interface

​

Params Tab

• Key-Value Editor: Add multiple query parameters
• Dynamic Rows: Automatically add new rows as needed
• URL Preview: Parameters are automatically appended to the URL
• Empty Row Handling: Clean removal of empty parameter rows

​

Headers Tab

• Standard Headers: Common headers with autocomplete suggestions
• Custom Headers: Add any custom headers required by your API
• Content-Type: Automatically set based on body type selection
• Authorization: Add Bearer tokens, API keys, or other auth headers

​

Body Tab

• None: No request body (typical for GET requests)
• Raw: Text-based content with format options
• Form Data: Key-value pairs for multipart/form-data

• JSON: JSON payload with syntax highlighting and formatting
• Text: Plain text content
• XML: XML data with syntax highlighting
• HTML: HTML content for specialized use cases

• Monaco Editor: Full-featured code editor with syntax highlighting
• Theme Support: Automatic light/dark theme adaptation
• JSON Beautify: Format JSON content with proper indentation
• Error Detection: Syntax error highlighting for JSON content

​

Advanced Settings

​

Response Variable

• Optional Field: Only needed if you want to store the response
• Variable Naming: Alphanumeric names for storing API response data
• Scope: Response variables are available in subsequent test steps
• Data Access: Access response body, status code, and headers

​

Examples

​

GET Request with Query Parameters

• Method: GET
• URL: https://api.example.com/users
• Params:
  • id: 12345
  • include: profile,settings
• Headers:
  • Authorization: Bearer {{API_TOKEN}}
• Response Variable: userResponse

​

POST Request with JSON Body

• Method: POST
• URL: https://api.example.com/users
• Headers:
  • Content-Type: application/json
  • Authorization: Bearer {{API_TOKEN}}
• Body Type: Raw (JSON)
• Body Content:

{
  "name": "John Doe",
  "email": "john.doe@example.com",
  "role": "user",
  "preferences": {
    "notifications": true,
    "theme": "dark"
  }
}

• Response Variable: createUserResponse

​

PUT Request with Form Data

• Method: PUT
• URL: https://api.example.com/users/12345
• Headers:
  • Authorization: Bearer {{API_TOKEN}}
• Body Type: Form Data
• Form Data:
  • name: Jane Smith
  • bio: Software Developer
  • avatar: @/path/to/image.jpg
• Response Variable: updateResponse

​

DELETE Request

• Method: DELETE
• URL: https://api.example.com/users/12345
• Headers:
  • Authorization: Bearer {{API_TOKEN}}
• Response Variable: deleteResponse

​

API Authentication Setup

• Method: POST
• URL: https://api.example.com/auth/login
• Headers:
  • Content-Type: application/json
• Body Type: Raw (JSON)
• Body Content:

{
  "username": "{{USERNAME}}",
  "password": "{{PASSWORD}}"
}

• Response Variable: authResponse

​

Best Practices

​

URL Construction

• Complete URLs: Always use full URLs including protocol (https://)
• Environment Variables: Use environment variables for base URLs and API endpoints
• Parameter Encoding: Let the system handle proper URL encoding of parameters
• Path Variables: Include dynamic path segments directly in the URL

​

Authentication Management

• Environment Variables: Store API keys and tokens in environment variables
• Header Consistency: Use consistent header names across API requests
• Token Refresh: Plan for token expiration and refresh workflows
• Security: Never hardcode sensitive credentials in test cases

​

Request Configuration

• Appropriate Methods: Use correct HTTP methods for each operation
• Content Types: Set proper Content-Type headers for request bodies
• Error Handling: Plan for various response status codes
• Timeouts: Consider API response times for test reliability

​

Response Handling

• Variable Storage: Store responses when you need to use the data later
• Status Validation: Verify expected status codes in subsequent steps
• Data Extraction: Extract specific values from responses for use in other steps
• Error Responses: Handle both success and error response scenarios

​

Technical Implementation

​

Request Processing

• URL Construction: Combines base URL with query parameters
• Header Management: Merges default and custom headers
• Body Serialization: Converts form data and raw content appropriately
• Authentication: Handles various authentication methods
• Error Handling: Manages network errors and invalid responses

​

Response Processing

• Status Code Capture: Records HTTP status codes
• Header Extraction: Captures response headers
• Body Parsing: Handles JSON, XML, and text responses
• Variable Storage: Stores response data for later use
• Error Information: Captures error details for debugging

​

Environment Integration

• Variable Substitution: Replaces environment variables in URLs and headers
• Dynamic Configuration: Adapts to different testing environments
• Credential Management: Securely handles API credentials
• Base URL Management: Supports different API base URLs per environment

​

Advanced Features

​

Response Data Access

• Response Body: responseVariable.body - The main response content
• Status Code: responseVariable.status - HTTP status code (200, 404, etc.)
• Headers: responseVariable.headers - Response headers object
• Error Information: responseVariable.error - Error details if request failed

​

Content Type Handling

• JSON: Automatic parsing and formatting with syntax highlighting
• XML: Proper formatting and syntax highlighting
• Text: Plain text handling with line wrapping
• HTML: HTML content with appropriate formatting

​

Form Data Support

• Key-Value Pairs: Simple form field submission
• File Uploads: Support for file upload fields (planned feature)
• Multi-part Encoding: Proper multipart/form-data encoding
• Field Validation: Validation of form field names and values

​

Integration with Other Steps

​

Variable Flow

• Input Variables: Use variables from Extract Value or JavaScript steps in API requests
• Output Variables: API responses can be stored and used in subsequent steps
• Data Transformation: Process API responses with JavaScript steps
• Conditional Logic: Use API responses in conditional steps

​

Test Flow Integration

• Setup Phase: Use API requests for test data preparation
• Validation Phase: Verify UI changes against API responses
• Cleanup Phase: Use API requests to clean up test data
• Authentication: Manage authentication tokens across test steps

​

Error Handling

• Response Validation: Verify expected status codes and response content
• Retry Logic: Implement retry logic for transient failures
• Fallback Scenarios: Handle API unavailability gracefully
• Error Reporting: Capture API errors for test debugging

​

Common Issues

​

URL and Endpoint Issues

• Problem: Invalid URL format causes request failures
• Solution: Ensure URLs include protocol and are properly formatted
• Validation: Use the built-in URL validation to catch format errors

​

Authentication Problems

• Problem: API requests fail with 401 Unauthorized errors
• Solution: Verify API keys, tokens, and authentication headers are correct
• Debugging: Check that environment variables contain valid credentials

​

Request Body Issues

• Problem: API returns 400 Bad Request for malformed request bodies
• Solution: Validate JSON syntax and ensure required fields are included
• Tools: Use the JSON beautify feature to format and validate JSON content

​

Response Variable Issues

• Problem: Response data not available in subsequent steps
• Solution: Ensure response variable name is set and alphanumeric
• Verification: Check that the API request completed successfully before using response data

​

Network and Timeout Issues

• Problem: API requests timeout or fail due to network issues
• Solution: Verify API endpoint availability and consider increasing timeouts
• Environment: Ensure test environment can reach the API endpoints

​

Related Steps

• Run JavaScript - For processing API responses with custom logic
• Extract Value - For extracting specific values from API response variables
• Fill - For using API response data in form fields
• Verify Value - For validating API response data against UI content
• Conditional Step - For creating conditional logic based on API responses
